Fully automated two-axis solar tracking system
A fully automated dual-axis solar tracking system for 3 panels. The system uses GPS-controlled two-axis tracking to fully track the sun throughout the day, increasing solar electricity generation by up to 66%.

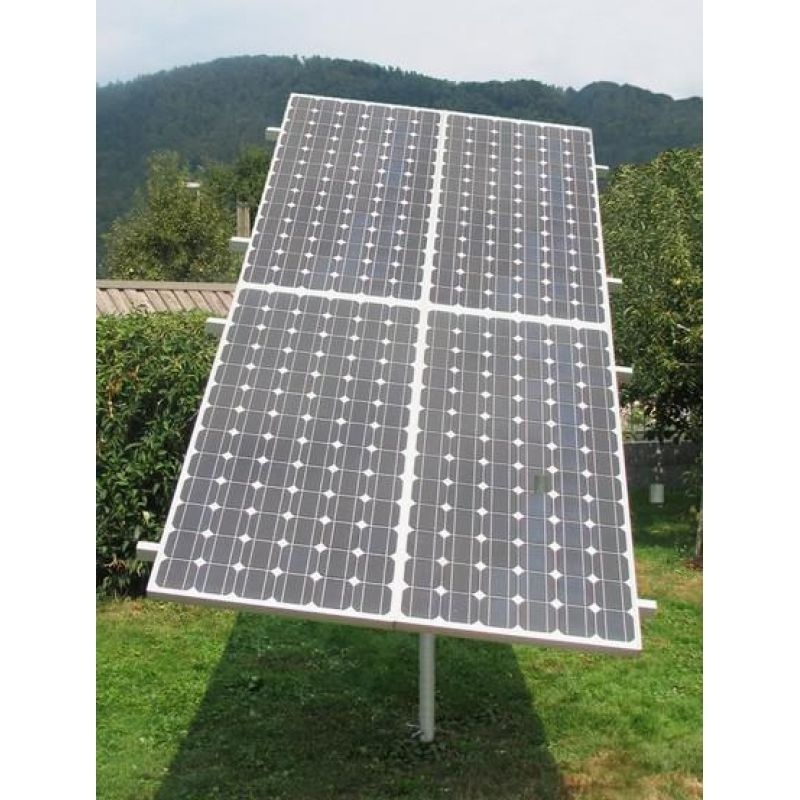

Dual-axis solar tracking system

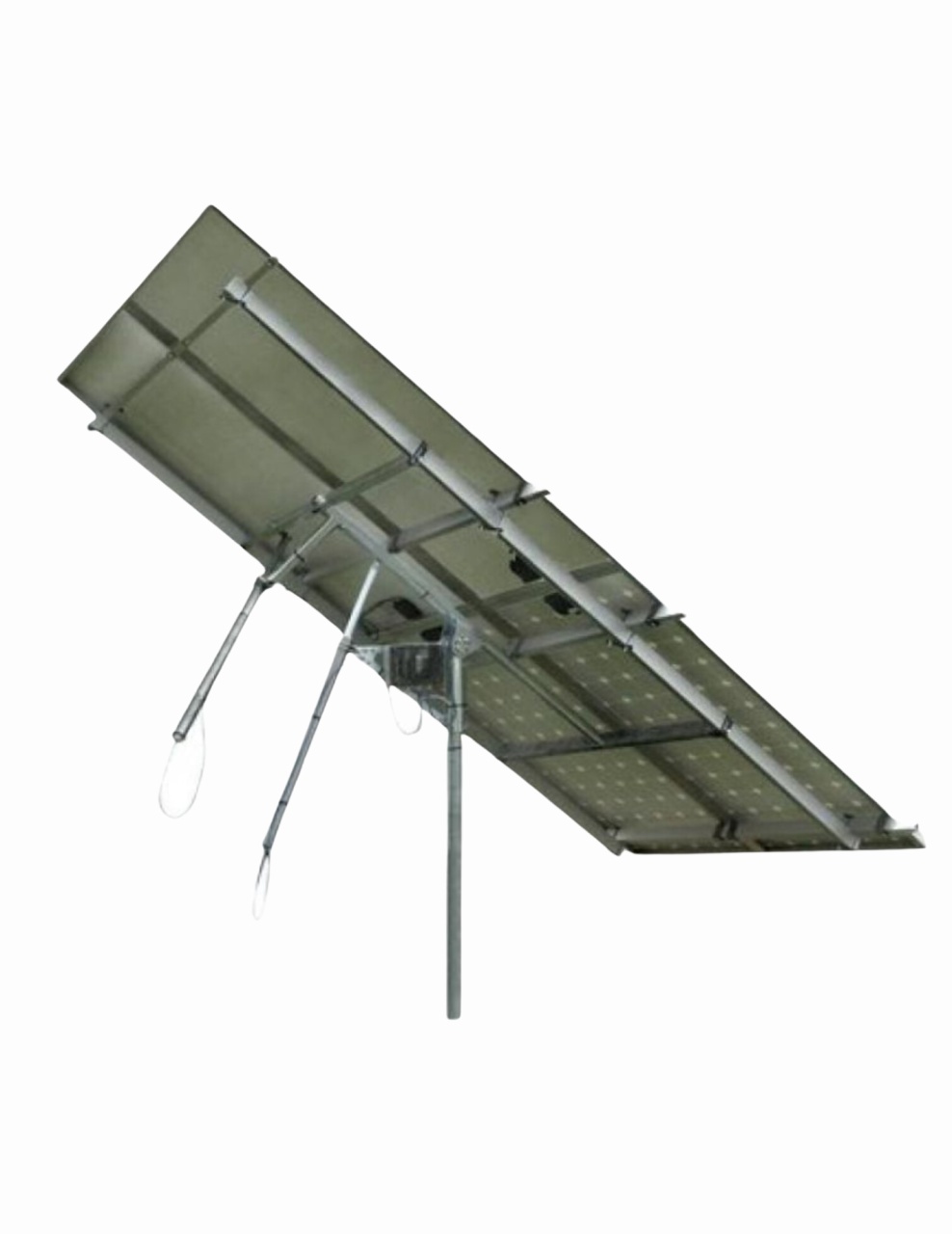

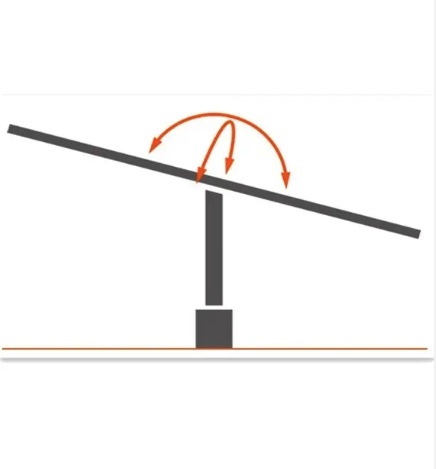

Dual-axis or dual-axis solar tracking system with better than 0.5 degree accuracy and support structure for 3 solar panels measuring 1 m x 1.7 m and weighing up to 20 kg each. In total for a solar panel surface of 4.9 m². Suitable for photovoltaic (PV) panels.
The wind resistance is maximum 144 km/h with an average wind speed of 50 km/h for 10 minutes. On an annual basis, with the two-axis system, you can get up to 7% more energy compared to a single-axis system and up to 66% more energy compared to a fixed solar system. Anchor bolt and main pole are part of this solar tracking package.
Anti-shading software function for solar tracking system included.
Please check compatibility of solar panels with this tracking system. If your panels are larger, we strongly recommend that you consider adding a Bar Arm Bracket to ensure proper mounting.
Technical Specifications
Mechanical Capabilities
| Number of rotating axes |
Dual-Axis |
| Hour Angle Limit |
100°, software and hardware limit 50°E to 50°W |
| Elevation angle |
15-90°, adjustable start |
| Hour angle motor type |
SM4S510M2 linear motor with 510 mm stroke |
| Elevation angle motor type |
Linear motor SM4S510M2 with 510 mm stroke |
| Diameter and length of the hour angle shaft |
Ø48 mm, L=1400 mm (fixed) |
| Backstructure |
2 pcs. of 1000 (H) mm & 4 pcs. 1500 (V) mm & 4 pcs. of 2000 (V) mm |
| Backstructure clamp type |
Toothed scissor clamps - 12 pcs. |
| Mounting tube diameter |
Ø60-68 mm (not included in kit) |
| Max. solar panel size |
3 pcs. of 0.99 m x 1.65 m totalling 4.9 m². |
| Max. weight of a solar panel |
3 pieces per 20 kg |
| Estimated lifetime |
800-1000h motor runtime (replace DC motor after 8 years if every day a cycle), replace backup battery every 3-5 years in battery mode, the rest 25 years |
Positioning System Data
| Tracking Accuracy |
< 0.5° (optional < 0.1° - for additional payment) |
| Operating Protocol |
TdAPS (Time Derived Astronomical Positioning System) |
| Type of positioning system |
Servomotor positioner with TdAPS as main logic function. |
| Positioner type |
Dini Rail MICRO positioner and external cables |
| Timer type |
GMT clock with EOT and calendar |
| Application type for monitoring and setting |
Solar system monitor via web |
| Set and change data via PC |
Yes |
| Monitoring via PC possible |
Yes |
| Switch on on PC command |
Yes, starts on command from PC, also all settings can be controlled by a string sent from PC |
| Rotation range |
1-15 min. |
Data Communication
| Type of communication interface |
USB interface |
| Network solution for centre control |
RS485 |
Firmware - Software
| PC upgrade possible |
Yes, firmware via PC using Helios Analytics |
Electrical Data
| Motor power |
24 VDC ±5% / -15% (SMPS current 2.5A must have 150% starting current) |
| Battery backup |
Backup for timer, position and data |
| Standby consumption (when not moving) |
20 mA ± 25% @24VDC |
| Power connection |
1 piece of 2-wire cable with 2.5 mm² internal Cu conductor (for lengths up to 30 m, not included in kit) |
| Junction Box |
190 (L) x 140 (W) x 70 (H) mm with connection harness |
Environmental Data
| Operating Temperature |
-25°C to +70°C (optional with arctic lubricant for -40°C to +70°C) |
| Operating humidity |
0% to 100% relative humidity |
| Max. safe wind speed |
max. 144 km/h |
Corrosion, Weather and Chemical Resistance
| Hot dip galvanising (HDG, EN ISO 1461) |
75-100 µm (equivalent to 50 years) |
Packaging
| Packed product dimensions |
1 box 165 (L) x 22 (W) x 27 (H) cm |
| Product weight |
47kg |
Quality Certifications
| International Protection Rating (IEC 60529) |
IP63 |
| Electromagnetic Compatibility (EMC Directive 89/336/EEC) |
Yes |
| Low Voltage Equipment Directive (EEC Council Directive 73/23/EEC) |
Yes |
Optional Properties
| Anti Shock function |
Yes, included |
| Heliostat utilisation |
Yes, for additional payment |
