SolarEdge Smart Meter SolarEdge Single Phase MTR EU1 65A

Description

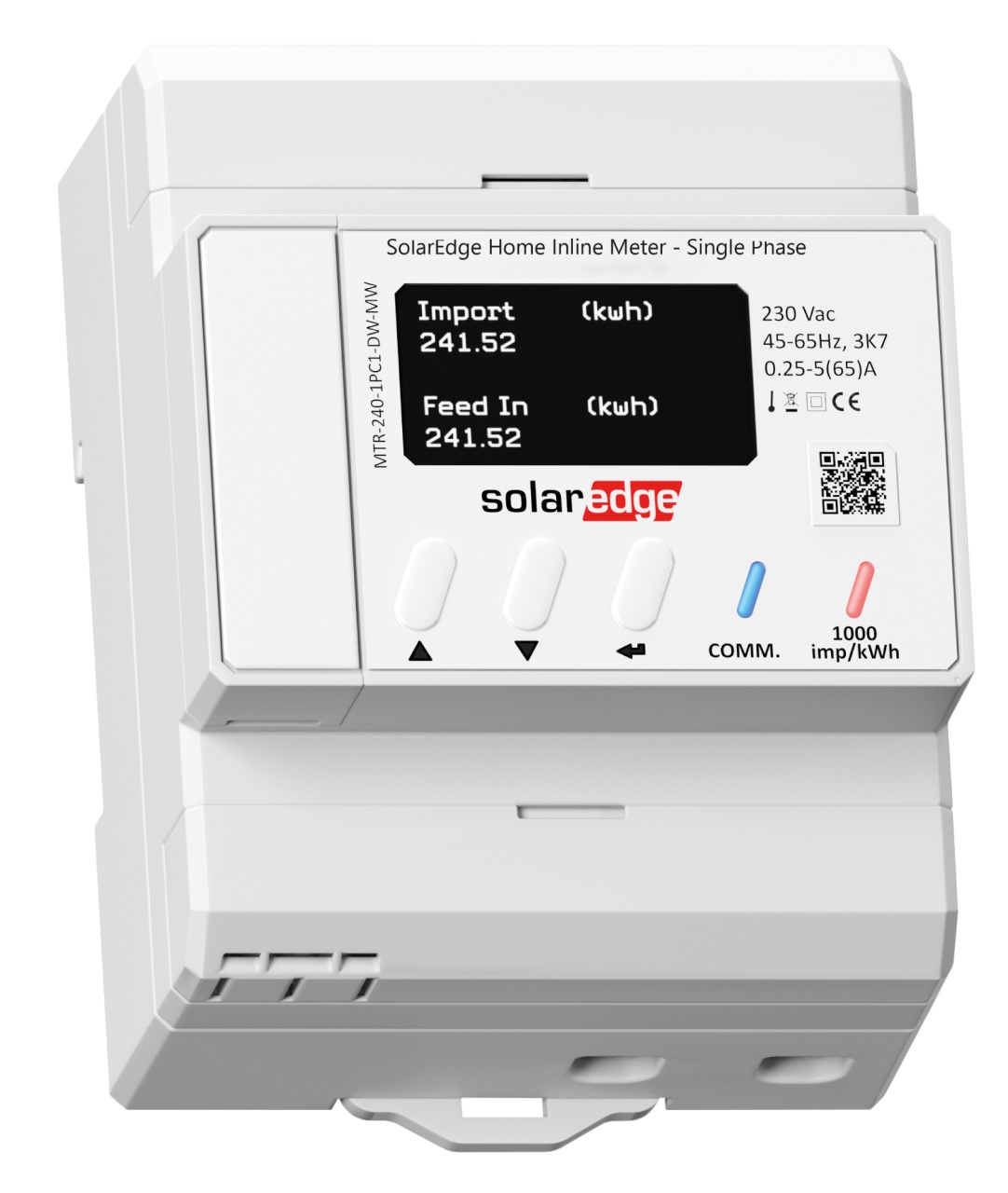

SolarEdge Home Inline Meter - MTR EU1 (MTR-240-1PC1-DW-MW)

Product Type:

• Inline meter for energy monitoring used in solar systems.

Main features:

• Measurement: meter for import/export, production and energy consumption with 1% accuracy.
• Integrated current transformers: Quick installation, low labour costs and simplified logistics.
• Communication:
  • Wireless via SolarEdge Home Network.
  • RS485 optional for wired connections.
• Capacity: Supports direct connection up to 65A per phase (single and three phase).
• Compatibility: Integrates with SolarEdge inverters (Home Hub, Home Wave, Short String, etc.).
• Quick Setup: Automatic detection via the SetApp mobile app.

Technical specifications:

• Nominal voltage: 1 x 230V AC
• Frequency: 45-65 Hz
• Maximum current: 65A
• Active energy measurement accuracy: 1%
• Reactive energy measurement accuracy: 2%
• Wireless communication: 863-870 MHz (EU)
• Mounting: DIN rail
• Dimensions: 72 x 90 x 58 mm
• Weight: 320 g
• Material: Lexan 503R
• Protection: IP51 (for indoor use)
• Operating temperature: -40°C to +70°C

Additional features:

• 8-digit display to visualise energy consumption.
• Direct mains connection for accurate measurements.
• Compatible with SolarEdgeSmart Energy applications.

Attention:

• A separate Energy Net module is required for wireless connection with SolarEdge Home Wave inverters.
• SolarEdge Home Hub inverters already include this module.

It is a smart meter suitable for optimising energy management in residential solar systems.
