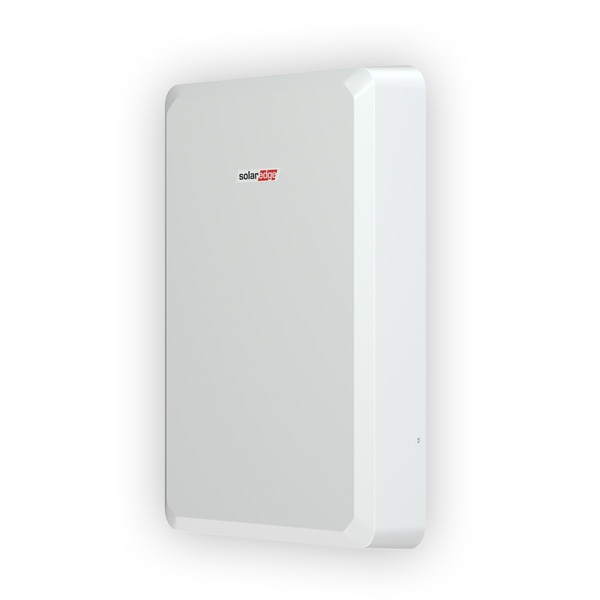

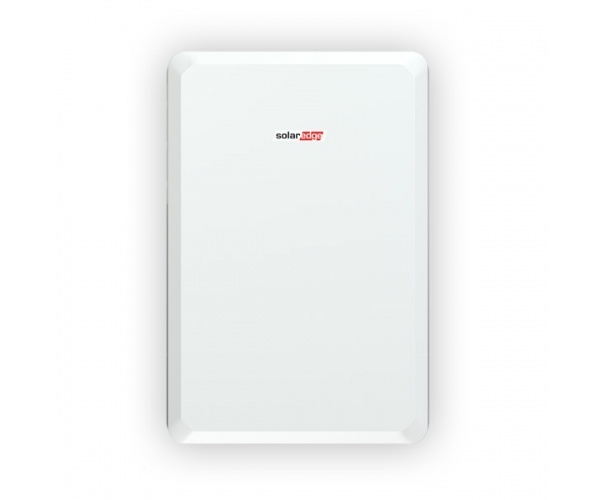

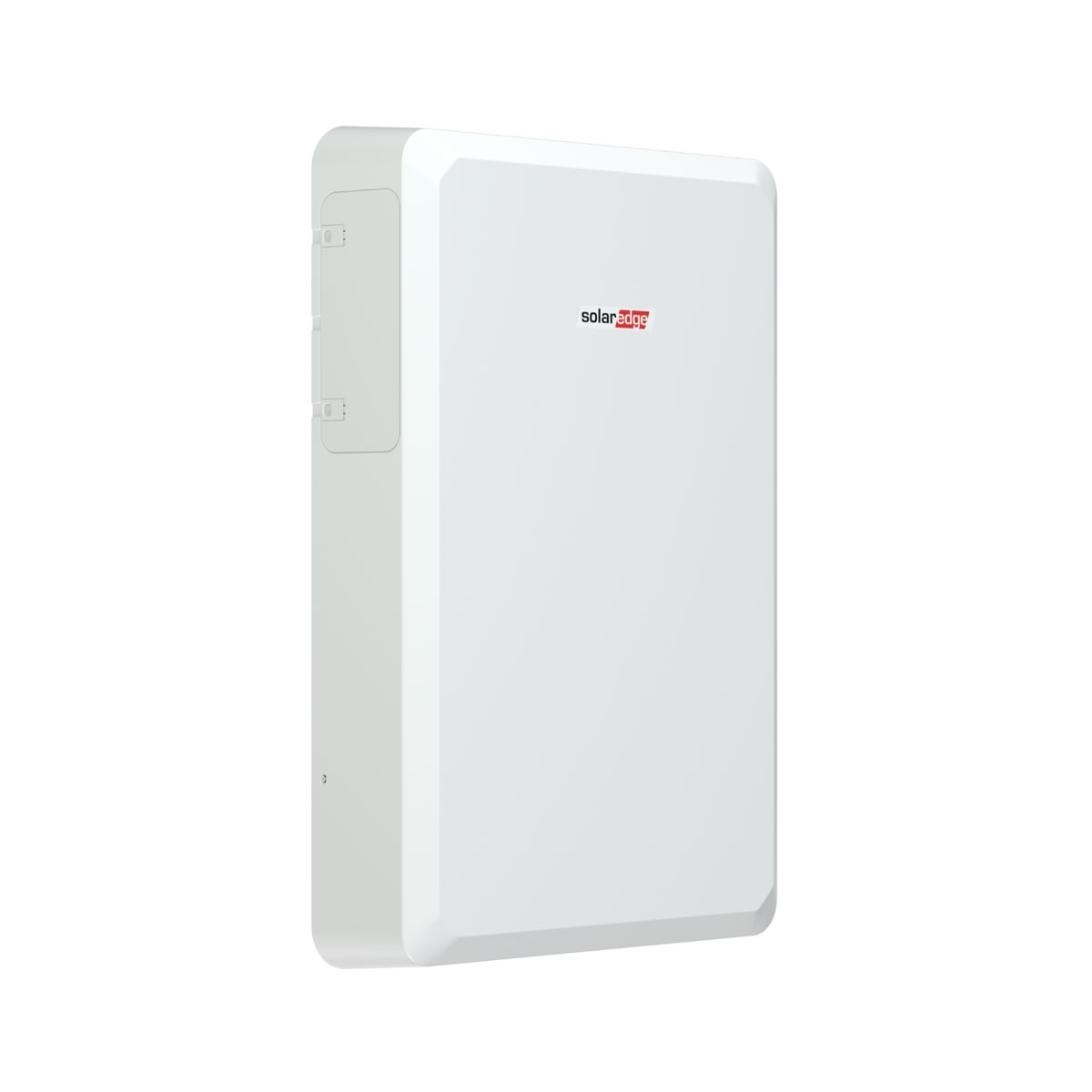

SolarEdge Home Battery 10Kwh HV 400V

SolarEdge Home Battery 400V is a battery designed for the European market, optimised for use with SolarEdge Home inverters.

Its main features include:

• Battery type: DC-coupled for maximum efficiency in solar energy storage and utilisation.
• Usable capacity: 9700 Wh (100% depth of discharge).
• Continuous output power: 5000 W.
• Peak power in backup mode: 7500 W for 10 seconds.
• Conversion efficiency: Up to 94.5%.
• Compatibility: Works with SolarEdge Home Hub/Wave (single phase), StorEdge Single Phase with HD-Wave technology and SolarEdge Home Short String Inverters.
• Scalability: Connect up to 3 batteries per inverter (depending on model).
• Installation methods: Floor or wall mounting, usable both indoors and outdoors (IP55 - dust and water protection).
• Dimensions and weight: 790 x 1179 x 250 mm, 119 kg.
• Cooling: Natural convection (no fans, noise level below 25 dBA).
• Operating temperature: -10°C to +50°C.
• Warranty: 10 years.

The battery also integrates seamlessly into the SolarEdge Home ecosystem, allowing solar energy, storage, EV charging and smart devices to be monitored and managed through a single app. Connectivity is via the SolarEdge Home Network and RS485.
