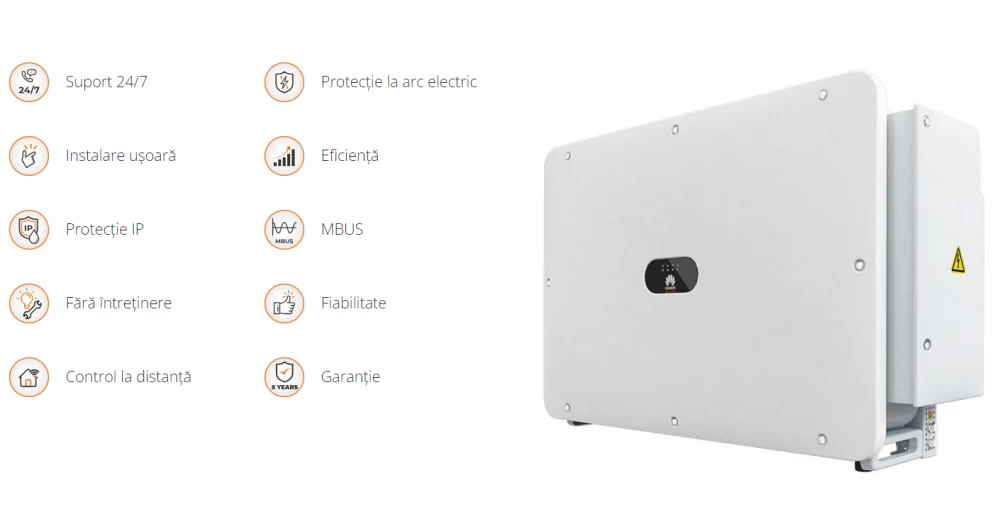

Huawei SUN2000-100KTL-M2 (100KW) On-Grid Three Phase Inverter

The HUAWEI SUN2000-100KTL-M2 inverter is a particularly powerful module for large solar systems. It converts electricity generated from sunlight into standard grid AC power. It is available on-site or for grid feeding. The dimensions of 1035 x 700 x 365 mm are compact for an inverter in this power class and the weight is 93 kg. Installation is best done in pairs or triplets. The DC connection to the PV system is made via plug-in connections, so commissioning is completed quickly. The Huawei FusionSolar app helps with configuration. The HUAWEI SUN2000-100KTL-M2 inverter also connects effortlessly with smart components. It supports RS485 communication, for example, with the smart register. Data can be viewed via the FusionSolar management system. In summary, the HUAWEI SUN2000-100KTL-M2 inverter offers many advantages, among others, the module already has surge protection (type 2 for DC and AC). In addition, ten independent MPP trackers are installed at the factory. Another nice feature is the low noise level due to the Smart Air Cooling. The 115,000 watts of power meets the needs of a large system, the MPPT voltage range is between 200 and 1000 volts. Maximum efficiency reaches an amazing 98.8%, the European efficiency is 98.6%. All this ensures high efficiency in operation.

- Maximum efficiency: 98.8%
- Input voltage range: 200 to 1000 V
- 10 MPPTs, 20 PV strings
- Ground fault protection
- AFCI
- Built-in leakage current monitoring system
- Intelligent PV string monitoring, fast fault detection
- String level management and optimisation
- Remote I-V curve diagnosis of all strings
- Ambient temperature range: -25°C to +60°C
- LED status indication
- Passive cooling
