Growatt ON-GRID MIN5000TL-X (5KW) Single Phase Inverter
RON 998.99
(VAT included)
RON 2,662.00
Last lowest price:
RON 998.99
shipping cost is not included
How can we help?
Description
Inverter VALIDATED for PROSUMERS according to ANRE rules

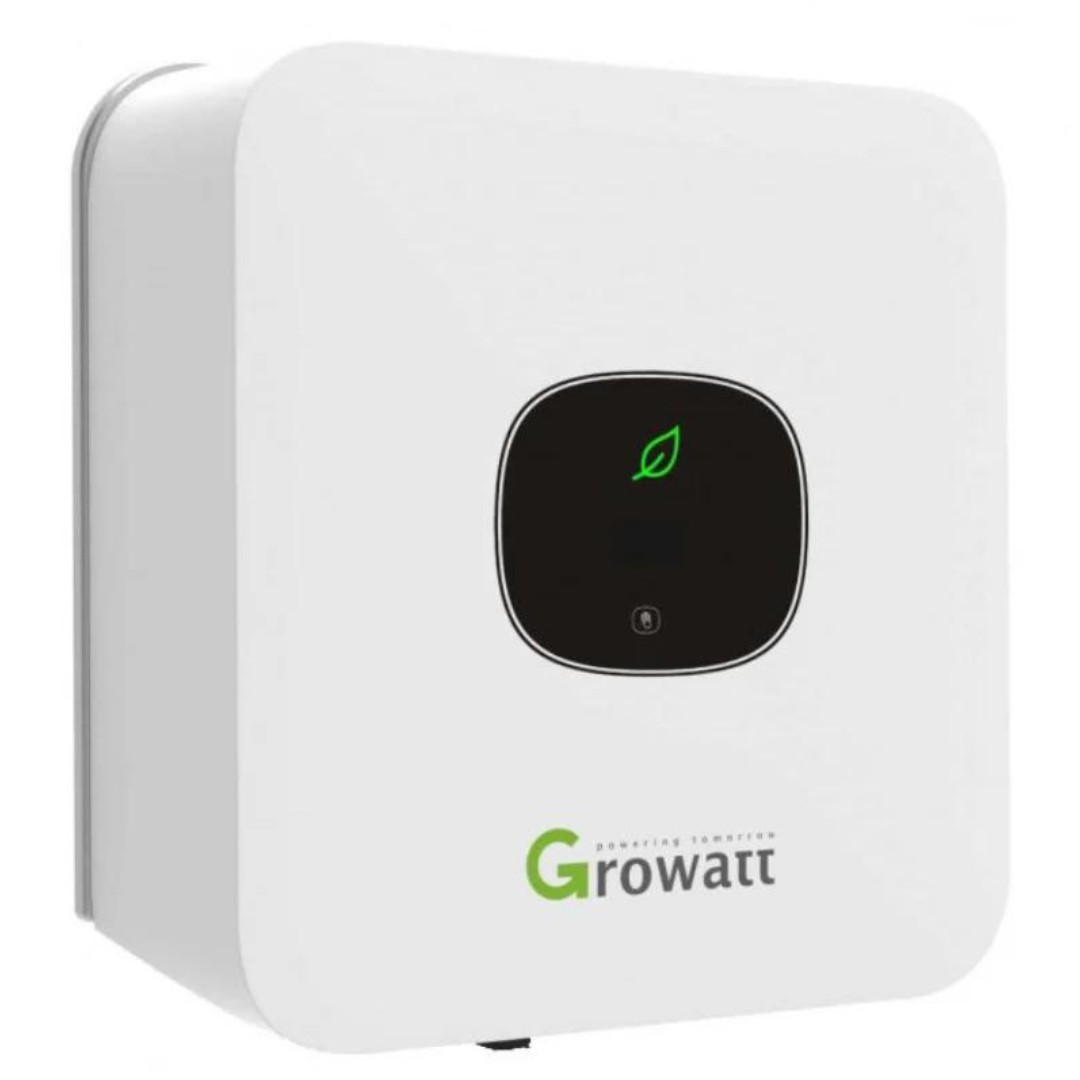

Growatt MIN 5000TL-X is the most up-to-date smart inverter solution for rooftop solar systems. It has a compact design and an outstanding efficiency of up to 98.4%.
| Simple and easy to use |
| Touch key and OLED display |
| Type II SPD on DC side |
| Supports export control |
| Efficient power generation |
| Max. 98.4% efficiency |
| DC/AC ratio up to 1.4 |
| Dual MPP trackers |
Technical specifications
|
Input data
|
|
Max. power PV recommended (for STC module)
|
7000W
|
|
Max. voltage DC
|
550V
|
|
Starting voltage
|
100V
|
|
Rated voltage
|
360V
|
|
MPPT voltage range
|
80V-550V
|
|
Number of MPP tracers
|
2
|
|
Number of PV strings per MPP tracker
|
1
|
|
Max. input current per MPP tracker
|
13.5A
|
|
Max. short-circuit current per MPP tracker
|
16.9A
|
|
Output (AC)
|
|
Rated AC output power
|
5000W
|
|
Max. apparent AC power
|
5000VA
|
|
Rated AC voltage (range *)
|
230V(180-280V)
|
|
AC mains frequency
|
50/60Hz, (45-55Hz/55-65 Hz)
|
|
Max. output current
|
22.7A
|
|
Adjustable power factor
|
0.8 leading - 0.8 lagging
|
|
THDi
|
<3%
|
|
AC mains connection type
|
Single-phase
|
|
Efficiency
|
|
Maximum efficiency
|
98.4%
|
|
European efficiency
|
97.5%
|
|
MPPT efficiency
|
99.9%
|
|
Protective devices
|
|
DC reverse polarity protection
|
Yes
|
|
DC switch
|
Yes
|
|
AC/DC overvoltage protection
|
Type III / Type II
|
|
Insulation resistance monitoring
|
Yes
|
|
AC short circuit protection
|
Yes
|
|
Ground fault monitoring
|
Yes
|
|
Grid monitoring
|
Yes
|
|
Insulation protection
|
Yes
|
|
Residual current monitoring unit
|
Yes
|
|
AFCI protection
|
Optional
|
|
General data
|
|
Dimensions (W/H/H)
|
375/350/160mm
|
|
Weight
|
10.8kg
|
|
Operating temperature range
|
-25 °C ... +60 °C
|
|
Noise emission (typical)
|
≤35 dB(A)
|
|
Self-consumption (night)
|
<1W
|
|
Topology
|
Transformerless
|
|
Cooling
|
Natural convection
|
|
Environmental protection assessment
|
IP65
|
|
Relative humidity
|
0~100%
|
|
Altitude
|
4000m
|
|
DC connection
|
H4 / MC4 (Optional)
|
|
AC connection
|
Connector
|
|
Display
|
OLED+LED/WIFI+APP
|
|
Interfaces: RS485 / USB/Wi-Fi/ GPRS/ RF/LAN
|
Yes / Yes / optional / optional / optional/ optional
|
|
Warranty: 10 years
|
Yes
|
* Alternating voltage and frequency range may vary depending on country specific network standard. All specifications are subject to change without notice.
